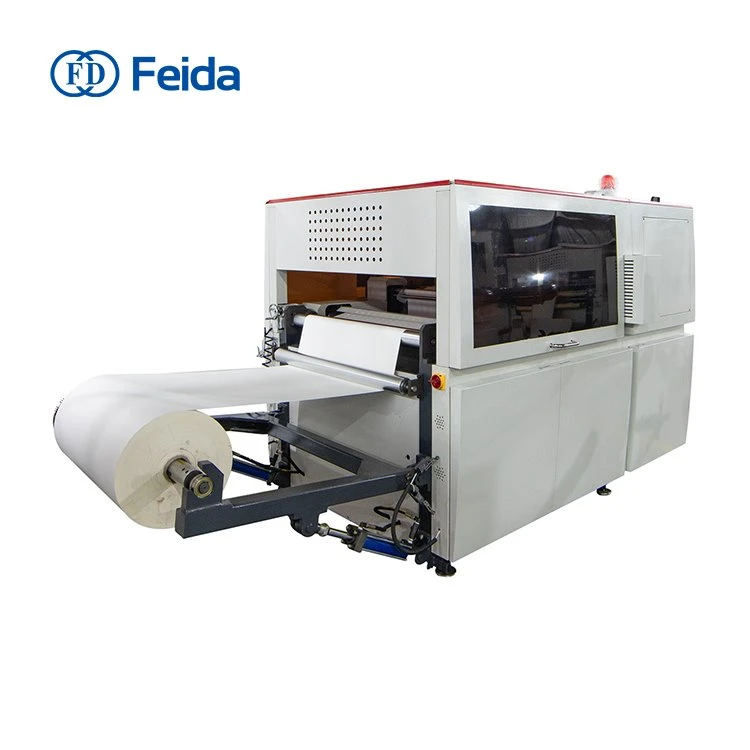

Description

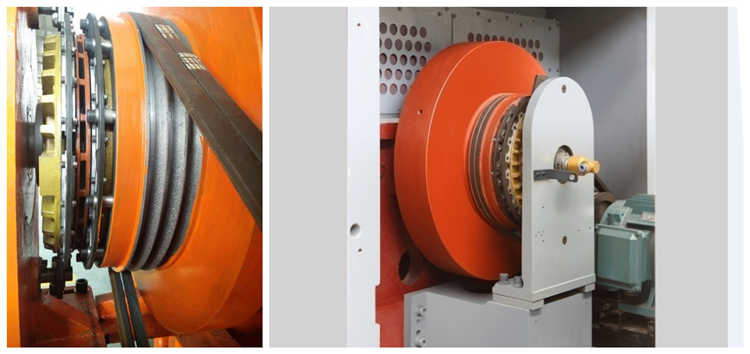

This paper box die cutting machine is driven by 7.5KW variable frequency motor, so its power is sufficient. It can also realize stepless speed regulation, which not only makes the machine run more stable, but also reduces energy consumption. The pneumatic clutch brake of the machine can control the driving torque by adjusting the air pressure to achieve the effect of low noise and high braking performance. In case of overload, the machine will automatically stop, so the response of the machine is very sensitive and fast.
Features
The paper box die cutting machine is mainly used in the packaging industry. It can realize the die-cutting of various cartons and greeting cards, and is an important equipment in the packaging process. This machine has simple structure and is very convenient for maintenance. It is controlled by computer, so it is easy to operate and requires less manpower. All important parts of the machine are made of high-quality cast steel, which will never deform, so the performance is more stable.
Company Information
Zhejiang Feida Machinery Co.,Ltd (Feida) starts from 2010 and covers 20,000m2 with the capabilty of manufacturing more than 300 machines annually as an enterprise which focuses on research and development, manufacture, sale, and after-sales service of Fully Automatic Roll Die Cutting Machine, Fully Automatic Roll Die Punching Machine, Carton Erecting Machine, Paper Box Forming Machine, Paper Cake Box Machine, Flexo Printing Machine, Cartoning Machine etc.
With the aim “to be the
supplier of high quality” and the mission “to satisfy customers and
offer the best after-sale service”, Feida would like to be the top brand
to meet the needs of customers to the great degree. Since its
establishment, Feida have been turned over in continuous years and has
edged itself into the leading position working with listed packaging
companies for KFC, Mcdonald’s, Subway, Starbucks.
Technical Parameter
Model | FD-970X550 |
Max cutting area | 940mmx510mm |
Cutting precision | ±0.15mm |
Paper gram weight | 120-400g/㎡ |
Production capacity | 160-200times/min |
Air pressure requirement | 0.5Mpa |
Air pressure consumption | 0.25m³/min |
Max cutting pressure | 180T |
Weight | 6T |
Max roller diameter | 1600mm |
Total power | 12KW |
Dimension mm | 4500x2200x1800 |
Stepper motor | Schneider |
Pressure adjusting motor | Taiwan |
Servo driver | Schneider |
Color Sensor | Sick |
PLC | Schneider |
Frequency converter | Schneider |
All other electrical parts | Schneider |
Photoelectric switch | Leuze |
Main air cylinder | AirTAC |
Solenoid valve and other parts | AirTAC |
Pneumatic clutch | China |
Main bearings | Germany |
Die-cutting machine is applicable to carton products. We can provide more matching machines according to customer requirements.
Tips
1. Whether the indentation die is suitable will have a great impact on the effect of the final product. When selecting the indentation die, you should pay attention to its dimensional accuracy, the hardness of the backing paper and the adhesion fastness. In addition, the size and specification of the selected wrinkling die should also be different according to the paper thickness.
2. Before a batch of new die-cutting operations, the operator needs to clean the bottom plate of the cardboard box die-cutting first, because the surface of the bottom plate may be left with adhesive and other debris from the previous process. In addition, when the operator adjusts the die-cutting pressure, he needs to step by step from small to large. If the die-cutting pressure is increased at one time, the die-cutting knife and the base plate will be damaged. In serious cases, the die-cutting machine will be damaged.
